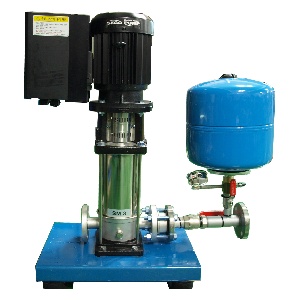

Overview of the booster pump system |
| |
This system supplies water at a constant pressure to meet the required quality of water and the pump speed is controlled by an inverter for appropriate adjustment of the flow rate of supplied water. The power, construction cost, sanitary management cost, and installation space may be reduced compared with existing overhead water tank method and, as the load of the building may be reduced, the building may be maintained safe. This system uses "vertical multi-stage pump with application of a whirlpool preventive guide to the impeller to which 3D vane is attached" and LG-Otis or Siemens motor is used. |
| |
|
|
Standard Specifications |
| |
Control Method: Individual inverter (0.75Kw~22Kw)
- Installation Environment: Indoor, 0ˇÉ~40ˇÉ of temperature, and 10~90% of relative humidity
- Liquid for work: Clear water (0ˇÉ~70ˇÉ)
- Pump: SME, SMES, or SMEG vertical multi-stage pump
- Power: 3-phase, 380V, 60Hz (others are optional)
- Max. Operation Pressure: 22bar
- Number of pumps: 2~6 sets
- Inlet/Outlet Pipe: Stainless steel pipe |
| |
|
|
Application Area |
| |
Home, office, public building, hospital, hotel, department store, and pressurized industrial water boosting facility
- This product is suitable to the site that has irregularly changed flow rate and requires maintenance of accurate constant pressure. |
| |
|
|
Specific Features in Brief |
| |
- The assembled goods imported from China or India etc are not used (they are self-manufactured).
- The quality of the system is improved with use of the best LS inverters.
- Corrosion is prevented and clear water is supplied because high-grade materials (domestic pars) are used.
- Self-developed ˇ°vertical multi-stage pump with application of a whirlpool preventive guide to the impeller to which 3D vane is attachedˇ± is used and Otis motor is installed to improve the performance.
- As the inerter is built-out type, it is safely protected from vibration or external impact.
- As the pump is softly and smoothly operated when changing the shift, the system stability is improved and water hammering is minimized.
- As the operation is accelerated or shifted by individual pump control by the inverter, the power is saved by at least 30% compared with constant-speed operation.
- The credibility of water supply is improved with maintenance of accurate constant-pressure.
- Large pressure tank is not required.
- Both-direction communication is made among individual inverters (CAN). |
|
