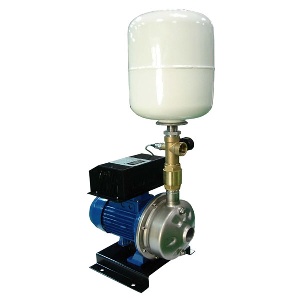

Overview of the booster pump system |
| |
This system supplies water at a constant pressure to meet the required quality of water and the pump speed is controlled by an inverter for appropriate adjustment of the flow rate of supplied water. The power, construction cost, sanitary management cost, and installation space may be reduced compared with existing overhead water tank method and, as the load of the building may be reduced, the building may be maintained safe. This system uses ˇ°vertical multi-stage pump with application of a whirlpool preventive guide to the impeller to which 3D vane is attachedˇ± and LG-Otis or Siemens motor is used |
| |
|
|
Specific Features |
| |
Control Method: 1~2 sets are controlled by an inverter
Pump: SH horizontal multi-stage pump (3-phase, 220/380V)
Power: Single-phase 220V, 3-phase 220V/380V 60Hz
Max. Operation Pressure: 6bar
Inlet/Outlet Pipe: Stainless steel pipe |
| |
|
|
Application area |
| |
Small villas, compression for higher floors of apartment house, pension, motel, common home, and neighboring life facilities |
| |
|
|
Major Functions |
| |
- Simple setting of pressure
- Automatic homing after power failure
- Idling prevention function
- Display of various kinds of information by Fnd function
- Interlocking operation by individual pumps |
|
