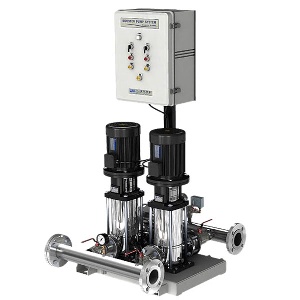

Overview of the booster pump system |
| |
This system supplies water at a constant pressure to meet the required quality of water and the pump speed is controlled by an inverter for appropriate adjustment of the flow rate of supplied water. The power, construction cost, sanitary management cost, and installation space may be reduced compared with existing overhead water tank method and, as the load of the building may be reduced, the building may be maintained safe. This system uses "vertical multi-stage pump with application of a whirlpool preventive guide to the impeller to which 3D vane is attached" and LG-Otis or Siemens motor is used. |
| |
|
|
Specific Features and Standard Specifications |
| |
The mechanical contact points in the system were minimized by MICCOM method in order to improve the durability and reliability of the parts
- Control Method: Control of number of sets (Step Control)
- Pump: SM, SMS, or SMG vertical multi-stage pump
- Power: 3-phase, 380V, 60Hz
- Pressure Detection: Powerless pressure switch
- Liquid for work: Clear water (0กษ~70กษ)
- Number of Pumps: 2~3 sets
- Motor: LG OTIS & Hyosung & Simense etc |
| |
|
|
Application Area |
| |
This is small-capacity pressurized water boosting equipment that can easily be used by anybody, is economically efficient, and may used for office buildings, industrial purpose, and temporary water supply at relatively low costs. |
| |
|
|
Major Control Functions of SP1000 |
| |
Sequential operation function
- Function for alternate operation of main pump
- Function for protection against dry season
- Function for operation with skipping troubled pump(s)
- Function for protection of motors from over-current
- Automatic homing after power failure
- Monitoring abnormal status (over-current and dry season) |
